Construction Lift Equipment Suspended Working Platform/Swing Stage/Cradle
Product Application:
Widely used in high-rise building construction, glass curtain wall and curtain wall decoration, maintenance, window cleaning, painting and so on. Also widely used in elevator installation, shipyards, tanks, Bridges, embankments and chimneys.
Parts contains of suspended platform :
(1)Platform(basket): hot galvanized steel / Aluminum
(2)Suspension Mechanism: Hot galvanized steel
(3)Electric hoists:LTD63
(4) Safety Lock: LS30
(5)Electric control box: Along with hoists
(6)Steel wire rope: 8.3mm
(7)Electric cable: 3*2.5+2*1.5
(8) Counterweights: Cement & Iron counterweight
(9)Spare parts
Technical Parameters for gondola :
| Specifications |
| Type | ZLP630 | ZLP800 | ZLP1000 |
| Rated Load | 630kg | 800kg | 1000kg |
| Lifting speed | 9.3m/min | 8.5m/min | 8.3m/min |
| Lifting height | 100m | 100m | 100m |
| Hoist | LTD63 | LTD80 | LTD80sdrive |
| Voltage-3Phase | 380V(415V/220V) | 380V(415V/220V) | 380V(415V/220V) |
| Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Power | 1.5kw*2 | 2kw*2 | 2.2kw*2 |
| Safety Lock | LS30 | LS30 | LS30 |
| Electric Control Panel Components | Schneider or CHNT | Schneider or CHNT | Schneider or CHNT |
| Platform Sise (LxWxH) | (2+2+2)x0.69x1.18m | (2.5+2.5+2.5)x0.69x1.18m | (2.5+2.5+2.5)x0.69x1.18m |
| Steel Wire Rope | 4pcsx100m 4x31SW+FC D=8.3mm | 4pcsx100m 4x31SW+FC D=8.3mm | 4pcsx100m 4x31SW+FC D=8.6mm |
| Special Cable | (3x2.0+2x1.0mm2)100m | (3x2.0+2x1.0mm2 )100m | (3x2.0+2x1.0mm2)100m |
| Counter Weight | 1000kg | 1000kg | 1000kg |
| Qty of 20" Container | 10 sets | 10 sets | 10 sets |

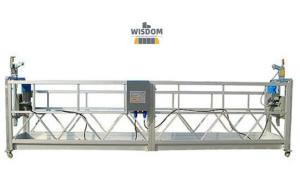

Platform(basket): Hot galvanized steel / Aluminum
Features for Aluminum platform:
No need painting or galvanizing on surface;
Oxygen membrane on the surface, rust-proof, anti-corrosion.
Light weight, 65% lighter than the same model of steel one.
Load effiency increased, anti-subversion ability improved.
Easy to install& operate.
Good look, with bright silver gray color
Hot dip galvanized steel platform.
With good outlook;
Anti corrosion.
Lower price than Aluminum platform.
Safety lock --Anti -proofing
Control Panel ---CHNT
Motor --LTD63/LTD80 220V / 380V 415V 50/60HZ 3PHASES
|
|
